AT500

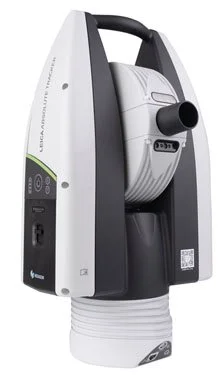

Leica absolute AT500 Laser Tracker




Unbox, power on, and start measuring – no cables, leveling, or reflector initialization needed. The built-in controller and dual IATA-compliant batteries provide up to 6 hours of cordless runtime. With a 100 Hz rate, it measures 10 times faster than the AT403, and the enhanced PowerLock system ensures efficiency. Pair it with the AT500 Connect App for easy network setup and leveling via your mobile device (available on Android and iOS).

Download the Leica Absolute Tracker AT500 Key features Brochure

B-Probeplus:

This entry-level probe offers wireless measurement with live feedback and a broad 16° acceptance angle up to 12 meters away. With durable buttons, it boasts a 6-hour battery life and meets ISO 10360-10 probing accuracy standards.

Measure Anywhere:

With IP54 protection and a temperature range of -15 to +50°C, the AT500 measures anywhere from mountaintops to foundries. Its integrated design with a built-in controller enhances its portability.

Features & Benefits

  • Integrated Design: Comprehensive built-in features like a battery-powered controller, wireless connectivity, environmental monitoring, HD camera, and ergonomic handle.

  • Probing System: Single case houses a lightweight sensor, probe, IR remote, and various transport options.

  • Connectivity: Built-in WiFi for straightforward PC setup/remote control and Bluetooth adjustments via AT500 Connect app (Android & iOS).

  • PowerLock: Auto-resumes disrupted line of sight.

  • Measurement: Continuous time and distance mode at 100 Hz. Cable-free, battery-powered Leica B-Probeplus for probing.

  • Durability: IP54 certified against dust/contaminants; -15 to +50°C operating temperature.

  • MeteoStation: Monitors temperature, pressure, and humidity to adjust for external changes, ensuring consistent measurement accuracy.

  • Orient-to-Gravity: Enables measurement with the Z-axis aligned to gravity, ideal for levelling and alignment tasks.

  • Operating Temperature: Ranges from -15 to +50°C.

  • Power & Range: Hot-swappable battery for all-day use; measures up to 320m (ø) and as close as 0.8m.

  • Guarantee: 24-month warranty; ten-year serviceability.
